33FT Series Double Trussed - Industrial Storage Tent
> Overview

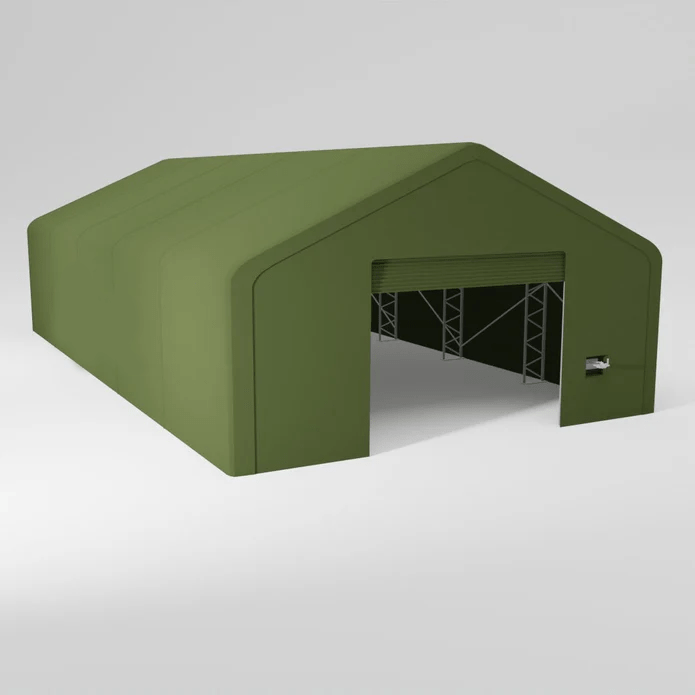

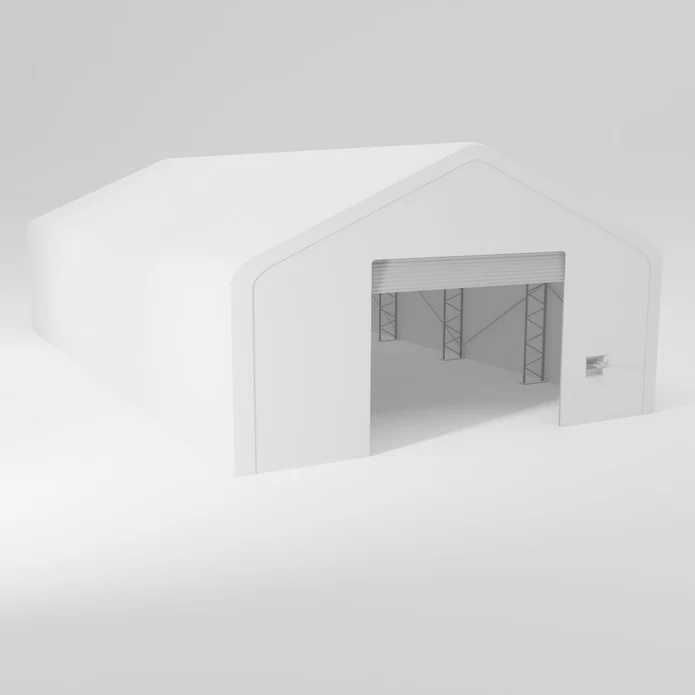

The 33x60x17ft Double Truss Storage Tent is a robust industrial-grade shelter engineered for large-scale operations requiring extended width, long-span depth, and tall clearance. Its double truss steel frame provides superior load resistance, while the 17ft internal clearance allows comfortable storage of tall machinery, vehicles, and stacked bulk materials.
Constructed from hot-dip galvanised steel and covered with a 900gsm fire-retardant PVC membrane, the shelter offers year-round weather protection against wind, rain, and snow. Anchoring is adaptable, with options to clamp directly to ISO container corner blocks or secure with flat-plate feet and 1.5-tonne concrete ballast blocks, making it suitable for a wide variety of ground conditions.
Fully CE certified to EN 1090, the 33x60x17ft double truss storage tent ensures compliance with European structural standards. Relocatable and scalable, it is widely trusted by Tier 1 contractors, logistics hubs, and agricultural operators looking for a large-capacity, compliant storage solution.
> Key Benefits
- Extended Capacity → 60ft span with 33ft width and 17ft height accommodates heavy machinery or bulk storage.
- Double Truss Design → Reinforced frame increases structural strength for challenging conditions.
- Flexible Anchoring → Clamp to ISO containers or secure with ballast blocks on non-container setups.
- Durable Materials → Galvanised steel frame with 900gsm fire-retardant PVC cover.
- CE Certified → Complies with EN 1090 standards for fabrication and safety.

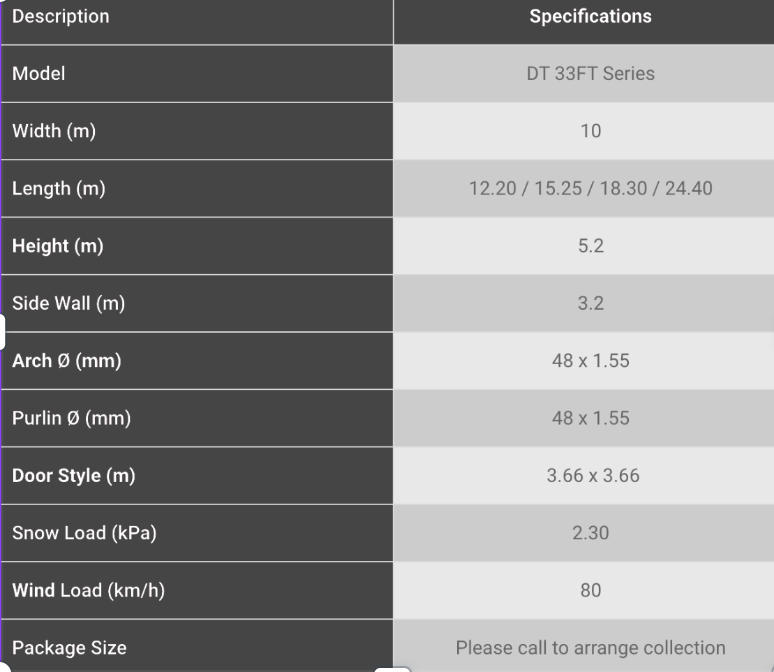

> Technical Specifications
| Model | C336017 – Double Truss Storage Tent |
|---|---|

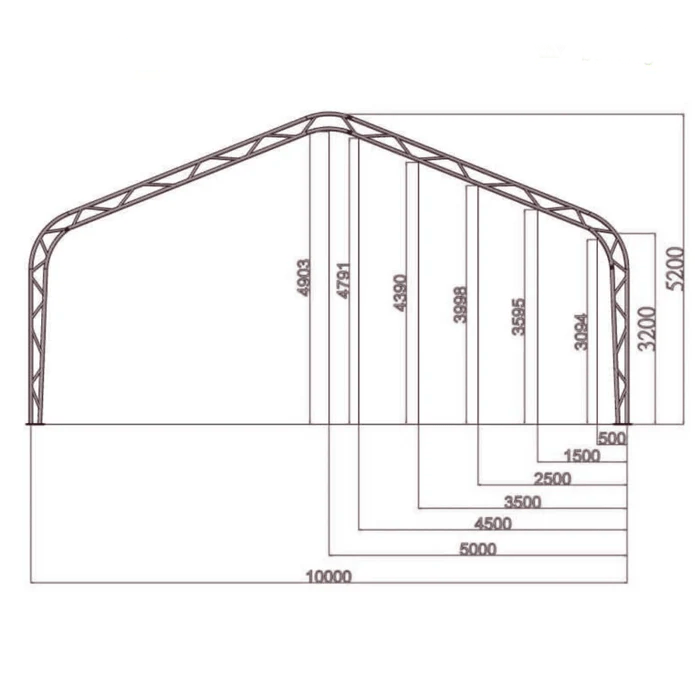

| Dimensions | 33ft x 60ft (10m x 18.3m) |
| Height (clearance) | 17ft (5.2m) |
| Frame | Double Truss Galvanised Steel, CE certified to EN 1090 |
| Fabric | 900gsm fire-retardant PVC |
| Anchoring | Clamps to ISO container blocks or secures with flat-plate ballast blocks |
| Wind Tolerance | Up to 110–120 km/h (site dependent) |
| Snow Load | Approx. 0.6–0.8 kN/m² |
| Warranty | 5 years |
> Use Cases
> Infrastructure & Tier 1 Projects
> Logistics & Warehousing
> Agriculture
> Industrial Applications
> Installation & Delivery
- Delivered flat-packed for efficient shipping and handling.
- Installation typically completed in 3–4 working days with lifting equipment.
- Anchors securely via ISO blocks or concrete ballast blocks.
> Why Choose Varna Buildings?
The 33x60x17ft double truss storage tent combines wide-span capacity, tall clearance, and CE-certified compliance, making it ideal for heavy-duty industrial, agricultural, and infrastructure applications. Built for strength, relocatability, and audit-ready compliance, it is a trusted solution for operators needing large-scale shelter with long service life.
> FAQs
> How does the 33x60x17ft canopy anchor?
> Is the shelter relocatable?
> What industries use this model?
> Is it CE certified?
