60ft Series Container Canopy
Prices Start From
> Overview

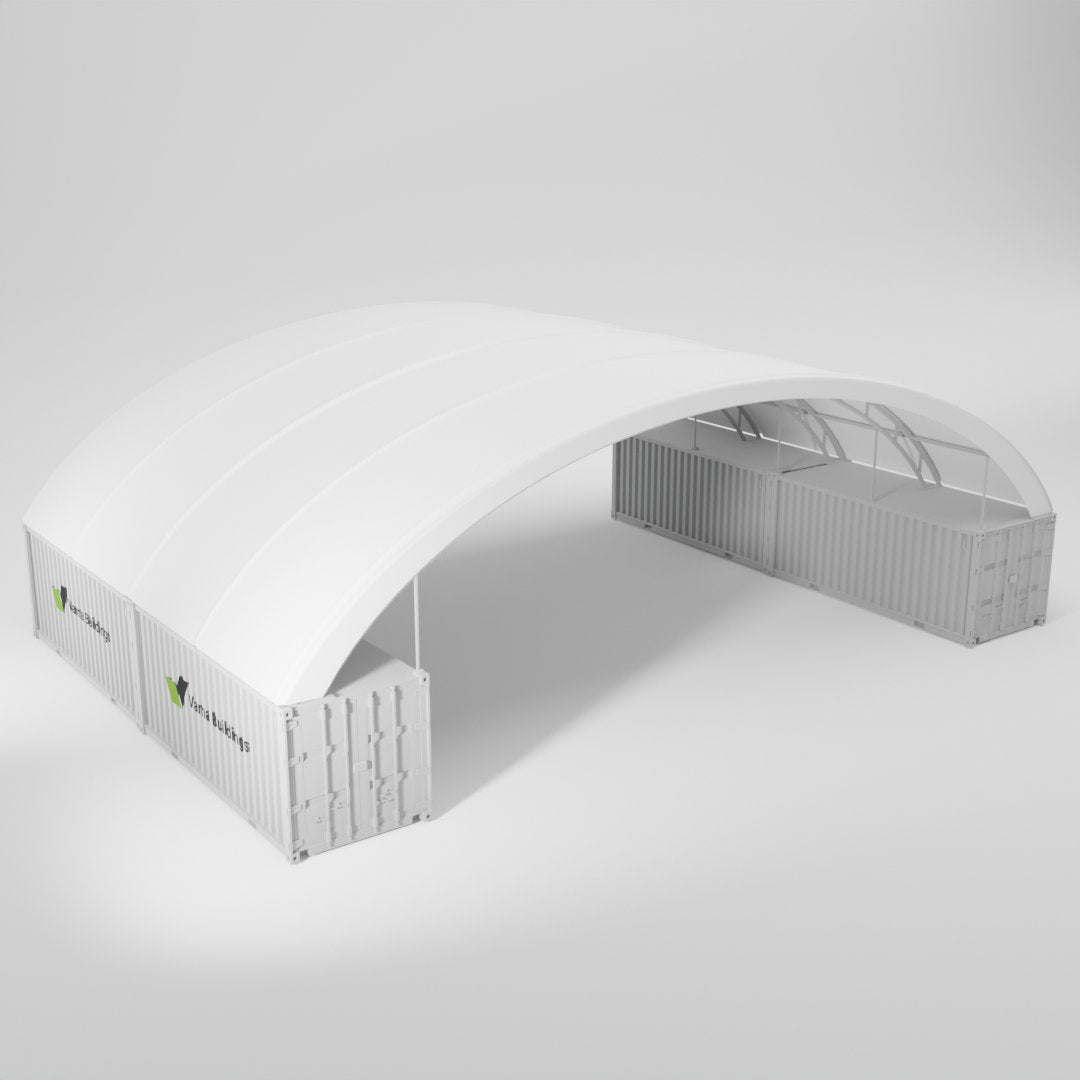

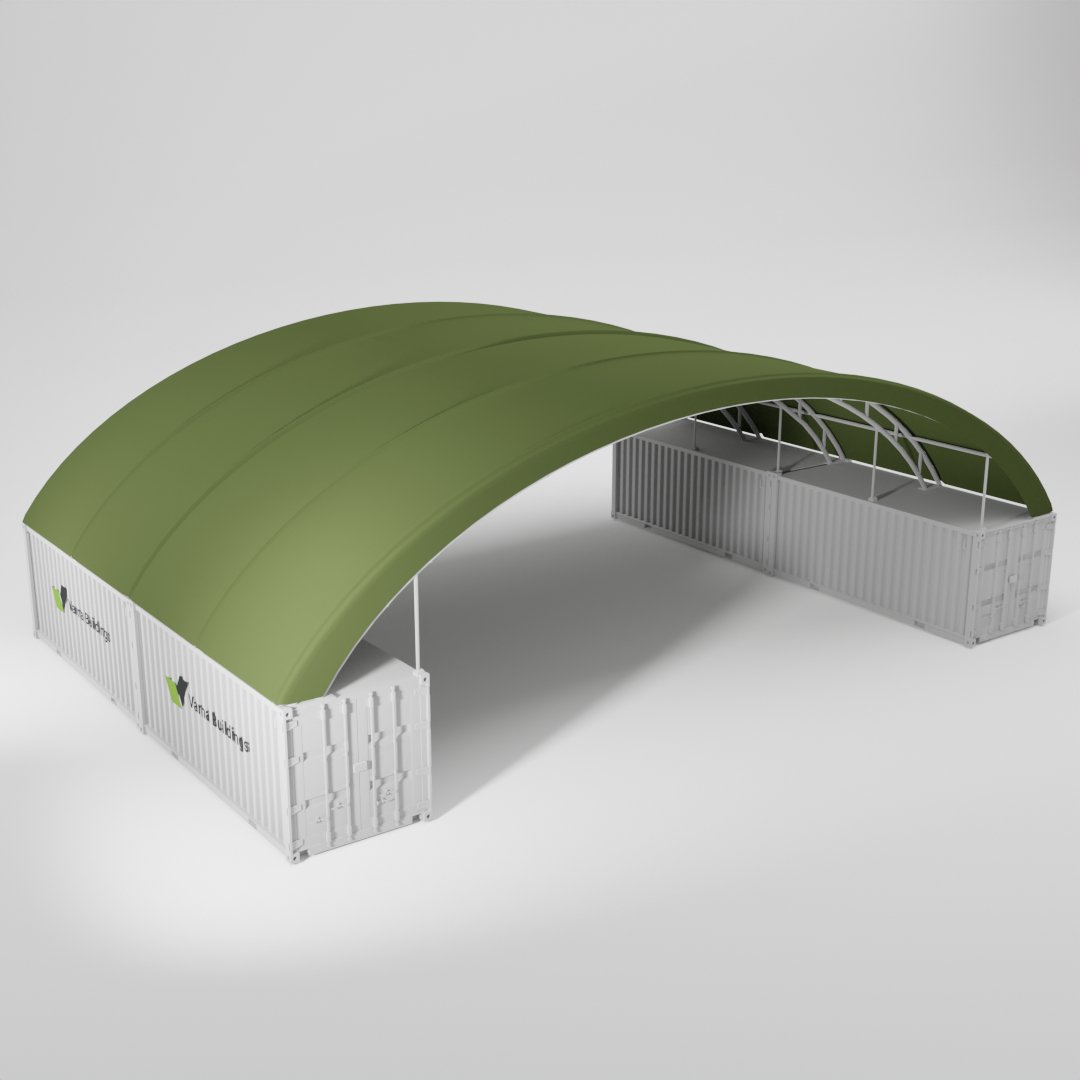

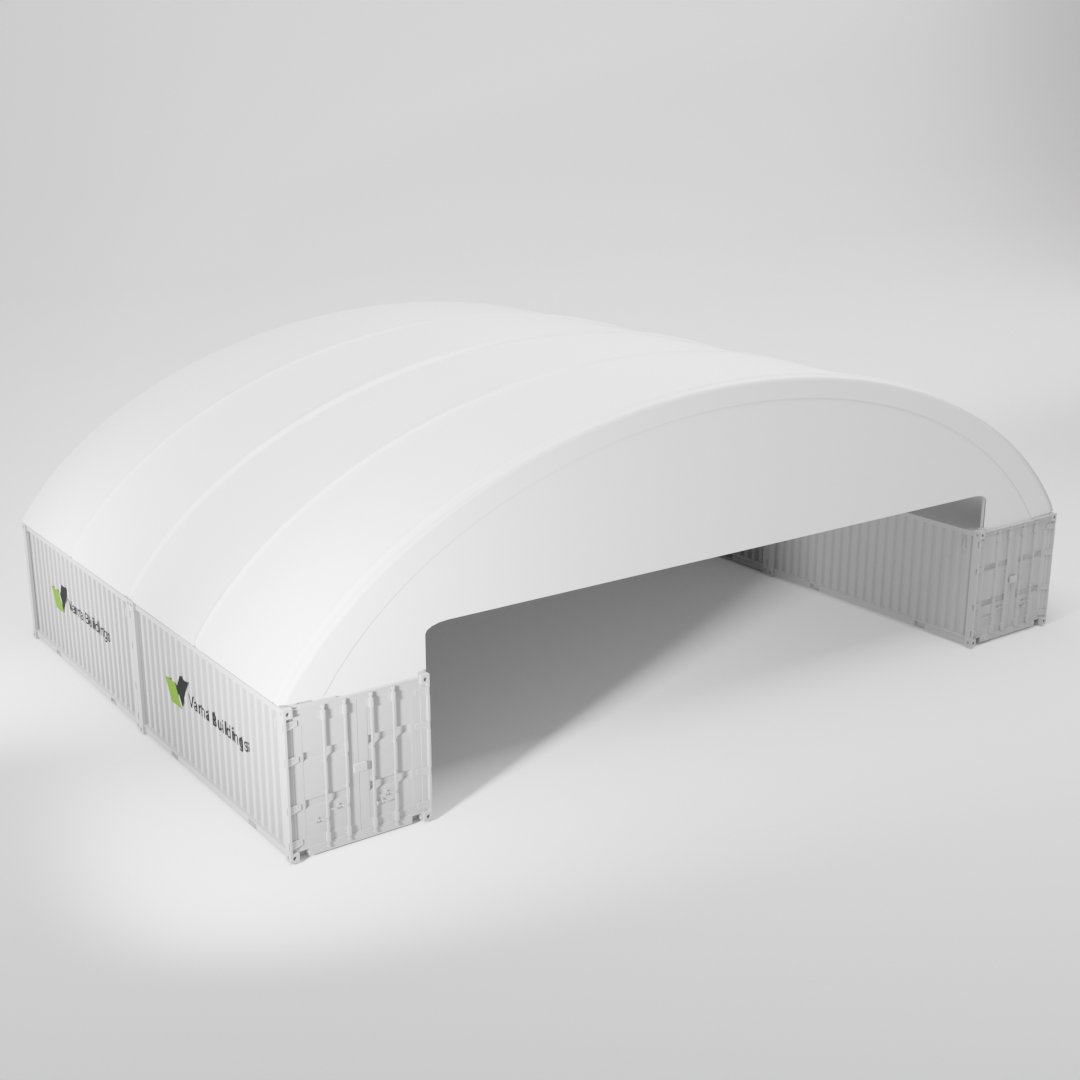

The 60-ft Series Skysheild Shipping Container Canopy (also called a conex canopy or container shelter) delivers a robust 60-ft clear span mounted between two ISO containers. Choose from 40, 80, or 120-ft lengths to get exactly the covered area you need—ideal for industrial, construction, agriculture, and logistics sites.
Built with galvanized steel double-truss framing and 900gsm fire-retardant PVC, Shkysheild is engineered for rapid deployment, year-round operations, and relocatable use—without permanent foundations.
Every structure is CE certified EN 1090 and designed in line with Eurocode wind and snow load guidance, giving U.S. operators confidence when projects require documented compliance.
> Key Benefits
- Flexible footprints → 60-ft span with 40 / 80 / 120-ft lengths (2,400 / 4,800 / 7,200 ft²).
- Double-truss strength → engineered for demanding wind and snow conditions.
- Multi-use → shipping container canopy / conex canopy / container shelter.
- Relocatable & modular → bolt-up system moves easily between sites.
- Compliance-ready → CE EN 1090 fabrication; Eurocode-based design approach.

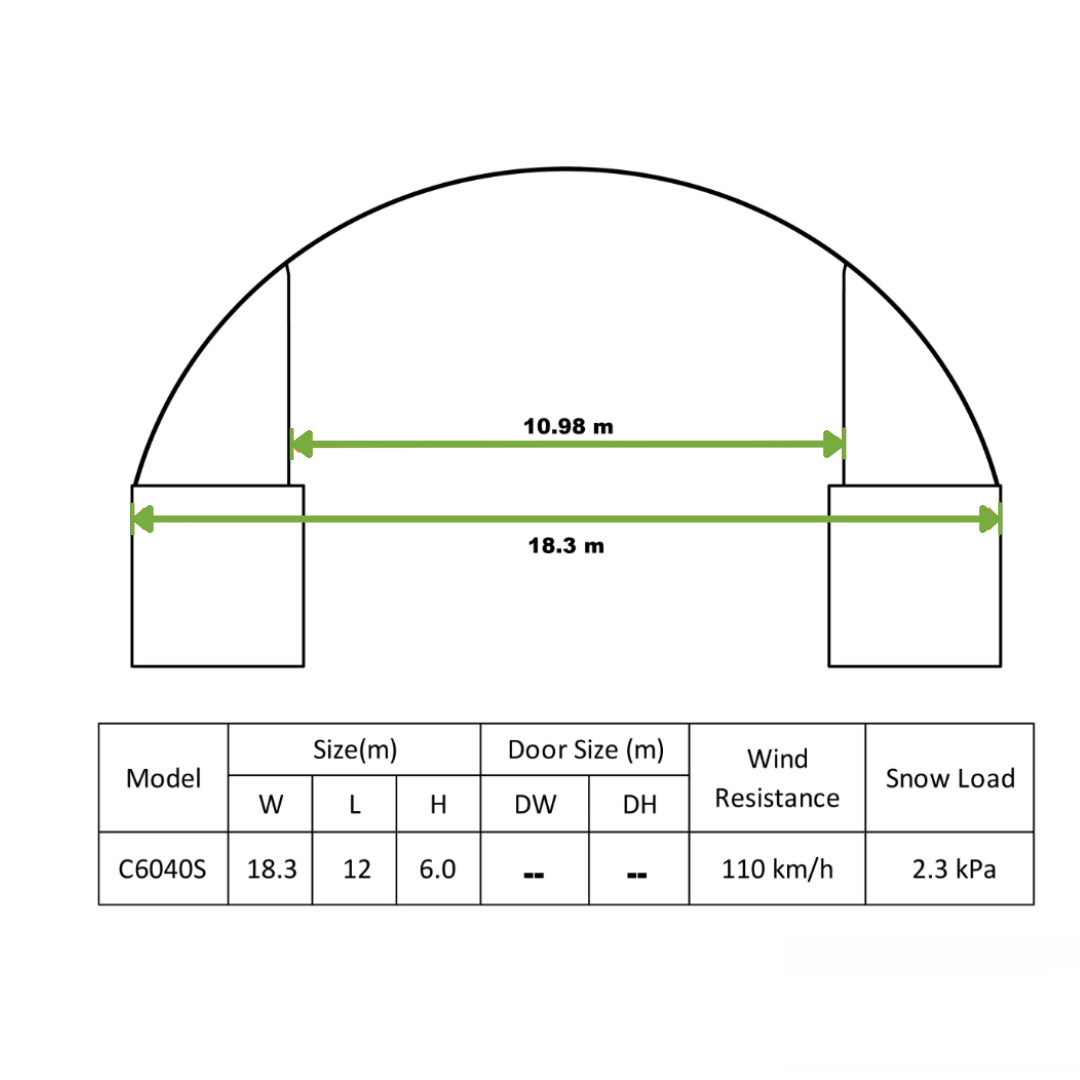

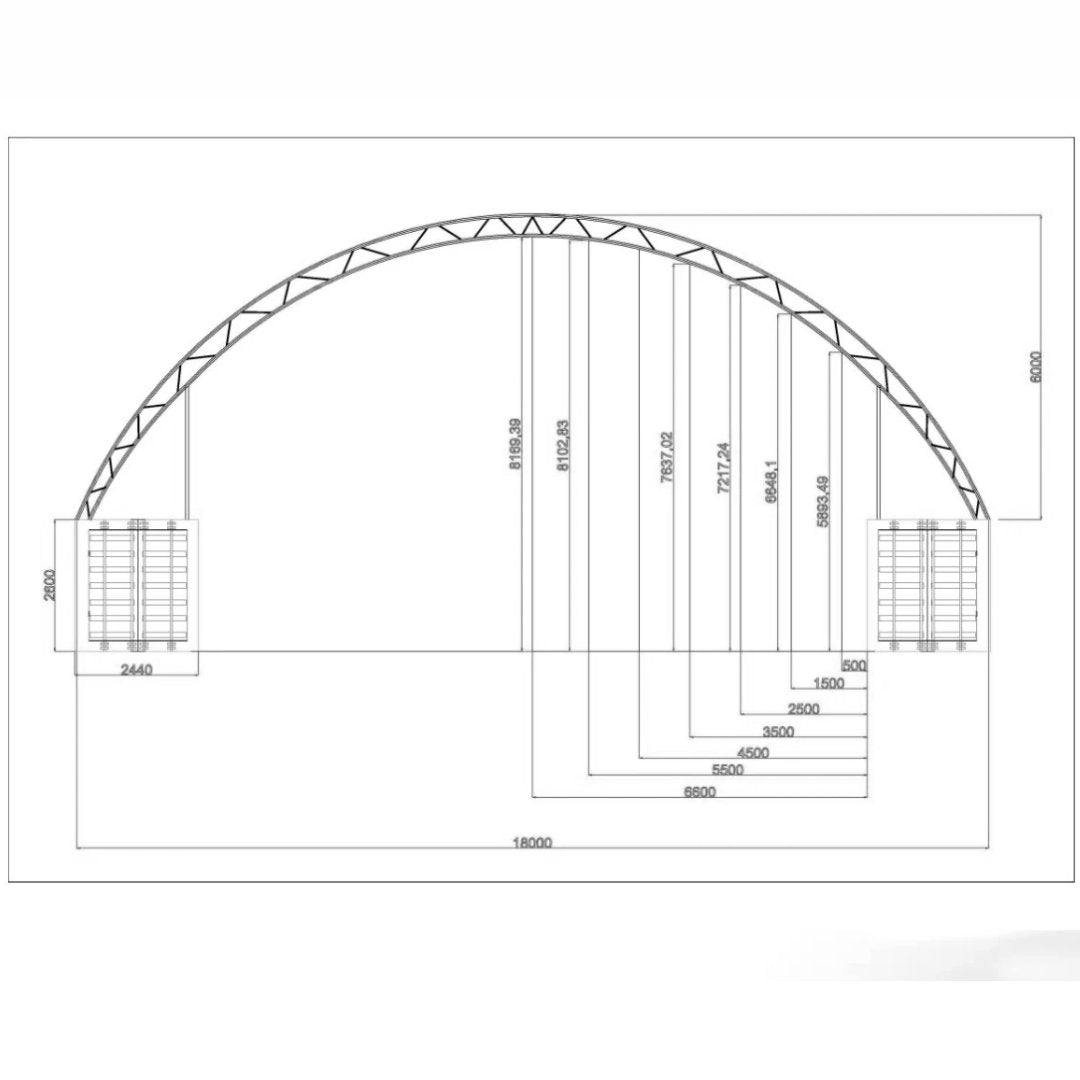

> Technical Specifications
| Model | Overall Dimensions (Span × Length) | Covered Area |
|---|---|---|
| Shkysheild 60×40 | 60 ft × 40 ft (18.3 m × 12.2 m) | 2,400 ft² (223 m²) |
| Shkysheild 60×80 | 60 ft × 80 ft (18.3 m × 24.4 m) | 4,800 ft² (446 m²) |
| Shkysheild 60×120 | 60 ft × 120 ft (18.3 m × 36.6 m) | 7,200 ft² (669 m²) |
| Clear Span | 60 ft (no interior columns) |
|---|---|

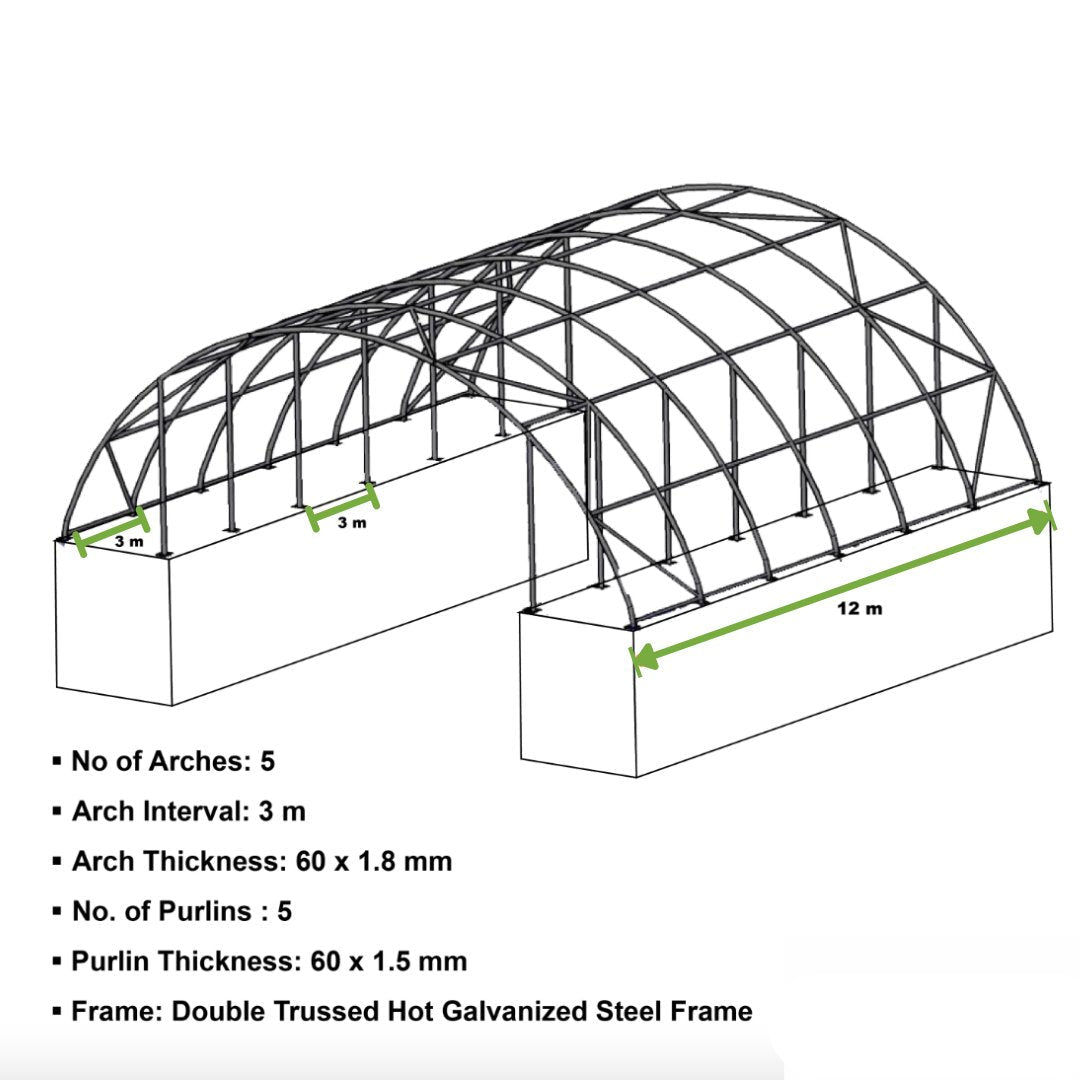

| Frame | Galvanized double-truss steel, CE certified EN 1090 |
| Fabric | 900gsm fire-retardant PVC (UV-stable, weldable panels) |
| Typical Eaves Height | ≈15 ft (4.6 m) — project-specific options available |
| Wind Design | Up to 110 km/h (site-specific engineering recommended) |
| Snow Load | 0.6–0.7 kN/m² (region & exposure dependent) |
| Anchoring | ISO container twist-lock clamps or ballast block system |
| Warranty | 5-year structural warranty |
> Use Cases
> Construction
Protects plant, materials, and welfare areas with heavy-duty cover.
> Agriculture
Ideal for hay, feed, livestock handling, or large machinery storage.
> Logistics & Yards
Creates weather-safe space for pallet storage, vehicles, and bulk goods.
> Industrial Workshops
Use as a relocatable workshop or maintenance bay for heavy equipment.
> Installation & Delivery
- Delivered modular for efficient shipping and fast assembly.
- Typical build time: 3–4 days using telehandlers or cranes.
- Anchors to ISO containers via twist-lock clamps or to ballast blocks.
> FAQs
> Is the 60-ft Series Shkysheild relocatable?
Yes. The modular bolt-up system is designed to be dismantled and reinstalled at other sites.
> Why a double-truss frame?
Double-truss geometry increases load capacity and stiffness, improving wind and snow performance over single-truss designs.
> What codes/standards does it follow?
Fabricated to CE EN 1090 with Eurocode-based wind and snow load design methodology.
> Which length should I choose?
40-ft (2,400 ft²) suits compact pads and equipment bays; 80-ft (4,800 ft²) fits most yard operations; 120-ft (7,200 ft²) maximizes throughput for logistics and industrial storage.
